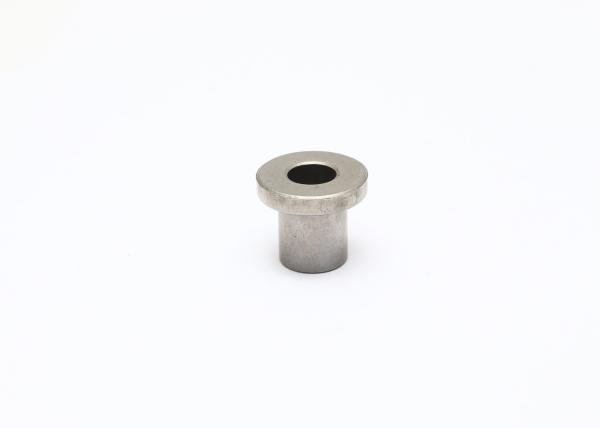

Powder Metallurgy Parts Oil Sintered Iron Guide Bushing With Oil Immersion

Specifications:

Packaging Details
Anti-rust Paper, Carton, Wood Case or Pallet

1. Inner Packing
For small products: 100pcs-200pcs per sealed plastic bag.
For bigger products: 2pcs-10pcs per plastic film roller (depends on the product size)

2. Outer Packing
8pcs-300pcs per carton (depends on the product size)

3. Shipment Packing
18-24 cartons per wood case or pallet, shockproof and safe for transportation.

Description:

Guide bushing

Raw material: F50 U3 60 sinter powder metal

Hardness: 70-90HRB

Density: 6.0g/cm³

Net weight is 21.44g

Our main sinter parts category:

Valve Plate, Helix Gear, Air Cylinder, ABS Sensor Rings, Pulley, shock absorber spare parts, sprocket wheel, Spur Gear

Lock Accessory, Oil Pump Rotors & Gears, Sprocket Wheel, Other Sintered PM Products

Material Available and Chemical Composition:

P/M Copper and Copper Alloys

P/M Iron and Carbon Steel

Iron and Carbon Steel

Iron-Copper and Copper Steel

Iron-Nickel and Nickel Steel

Low Alloy Steel

Commix Low Alloy Steel

Sinter Hardened Steel

Diffusion Alloyed Steel

Copper Infiltrated Iron and Steel

1. We are professional powder metallurgy manufacturer

2. Process: mixing--compacting--sintering--resizing--cleaning--vacuum oiling--packing

3. Material: steel, copper, steel copper, bronze, alloy

4. High precision, 100% test assure good quality

5. We can make the products according to customers' drawings or requirement

6. Short deliver time

7. The products we produce are widely used in automobile, motorcycle and many other fields like transmission gear, spur gear, bevel gear, helical

gear, sleeve, copper sleeve, sleeve bearing, bushing, bush, pulley, timing pulley, structural parts, powder metallurgy parts, nut, auto parts,

sintered parts, rotor and stator etc.

Applications:

1. Automotive Part

2. Motorcycle Part

3. Pump Parts

4. Locomotive Parts

5. Machinery Parts

6. Tool Parts

Competitive Advantage:

1. Very tight tolerance and high density

2. Uniform heat treatment and steam treatment

3. Precise metal-working finishing

4. Higher mechanical performance

5. Professional technology service

Picture show:

Our company was set up in a beautiful city Ningbo, which is closed to Ningbo seaport and airport. Weiwo is a specialized company that is engaged in producing auto spare parts, designing and manufacturing electromechanical & machinery spare parts, hydraulic motor and hydraulic valves with different series, agricultural pruning shears and related agricultural products.

We have a strong R&D team with full of creative spirit and develop many new products every year and have obtained many invention and utility model patents.

The products include mechanical shaft and spares, diesel engine parts, sealing element, agricuture tools and equipment, hydraulic motors and valves, powder metallurgy parts, du bushing and bearing, shock absorber parts, stamping parts, plastic and rubber parts, in addition we design and manufacture automatic machine such as shock piston banding machine and groove cutting machine.

As a professional enterprise of manufacturing and trade, we insists on pursuing better quality on and on. We control the quality strictly from raw material to finished parts. We have carried out an integrated production system which is based on quality focus. We refer to the rigorous four aspects ( material importing control→ production line control→ QC department control→ logistic department control ) and quality control system to make sure all the products are intact and perfect before delivery.

As a seller, our products are exported to the whole world and sold nationally for many years. More than one half parts are exported to USA, Germany, France, Canada, Brazil, India, Malaysia etc., have set up good relationships with the customers from home and abroad. We have an intelligent marketing team who are exploring new markets, developing potential customers, solving problems and serving customers with orders well. We firmly believe that we are a competitive and friendly cooperator and our goal is for mutual benefit and long-term cooperation. All the staff in our company will always welcome customers from all over the world to visit and negotiate.
